$41,499.00 Rideaway
Next Generation

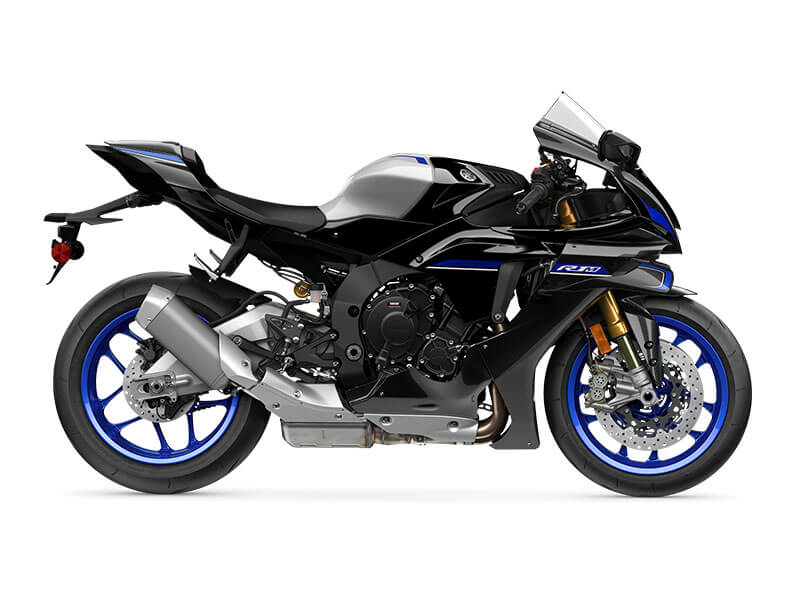

Yamaha's highest specification and most exclusive supersport model, the YZF-R1M immediately sets itself apart with a distinctive colour scheme, polished aluminium swingarm and striking full carbon fibre bodywork, which seamlessly integrates with the new carbon fibre winglets for an aggressive, track-focused look. An engraved, serial numbered badge further highlights its exclusivity.
Along with the same advanced performance provided by the powerful 998cc CP4 crossplane engine, comprehensive electronics suite and lightweight aluminium Deltabox frame found on the standard R1, capability is pushed to an even higher level on the R1M with the addition of its sophisticated Öhlins Electronic Racing Suspension. The ERS simplifies suspension tuning by providing streamlined dynamic tuning modes for both street and track, as well as manual modes for more conventional suspension tuning.
Along with the same advanced performance provided by the powerful 998cc CP4 crossplane engine, comprehensive electronics suite and lightweight aluminium Deltabox frame found on the standard R1, capability is pushed to an even higher level on the R1M with the addition of its sophisticated Öhlins Electronic Racing Suspension. The ERS simplifies suspension tuning by providing streamlined dynamic tuning modes for both street and track, as well as manual modes for more conventional suspension tuning.
| Colours | Carbon Fibre |
|---|---|
| Engine | Liquid-cooled, 4-stroke, DOHC, 4-valve, forward-inclined parallel 4-cylinder |
| Displacement | 998.0 |
| Bore | 79.0 x 50.9 |
| Compression | 13.0 : 1 |
| Lubrication | Wet sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Engine Management | YCC-T, YCC-I, SCS, LIF, UBS, ABS, LCS |
| Starter System | Electric |
| Fuel Tank Capacity | 17 |
| Oil Capacity | 4.9 |
| Final Transmission | Chain |
| Transmission | Constant mesh 6-speed |
| Length | 2055 mm |
| Width | 690 mm |
| Height | 1165 mm |
| Weight | 205 kg |
| Seat Height | 860 mm |
| Wheelbase | 1405 mm |
| Clearance | 130 mm |
| Frame Type | Aluminium Deltabox |
| Suspension Front | Öhlins electronic adjustable telescopic forks, 120mm travel |
| Suspension Rear | Öhlins electronic adjustable, 120mm travel |
| Brakes Front | Hydraulic dual discs, 320mm - ABS |
| Brakes Rear | Hydraulic single disc, 220mm - ABS |
| Tyres Front | 120/70 ZR17MC (58W) Tubeless |
| Tyres Rear | 200/55 ZR17M/C (78W) Tubeless |
Features

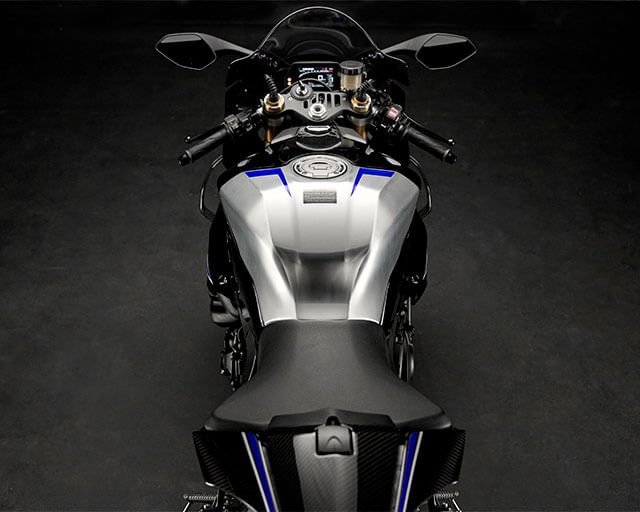

Advanced Bodywork
The YZF-R1M comes with a radical factory-bike look inspired by the race-winning Yamaha M1 MotoGP bike. The aggressive front cowl and screen give a low frontal area for minimal drag, and the integrated fairing flows seamlessly into the fuel tank sides to give a tight tuck-in position for the most efficient aerodynamics.

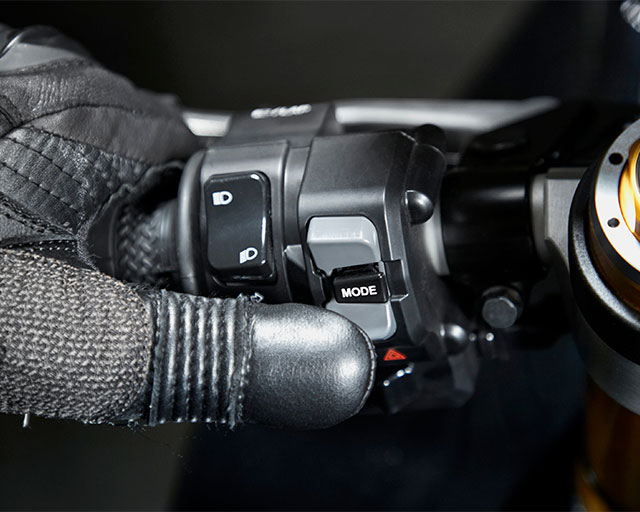

Engine Brake Management
Control is everything when you're on the track, and the Engine Brake Management (EBM) system allows you to adjust engine braking force. Using data from various sensors, the EBM adjusts throttle opening, ignition timing and fuel injection volume to give you a choice of three engine braking modes to suit different riding situations.
Öhlins Electronic Racing Suspension
The Öhlins Electronic Racing Suspension (ERS), featuring NPX pressurised fork legs, along with a revised rear shock, is the most sophisticated suspension system available on a production Yamaha. Its advanced software enables you to corner, brake and accelerate more efficiently, and its user-friendly interface allows you to make rapid suspension setting changes to suit different tracks and surface conditions.

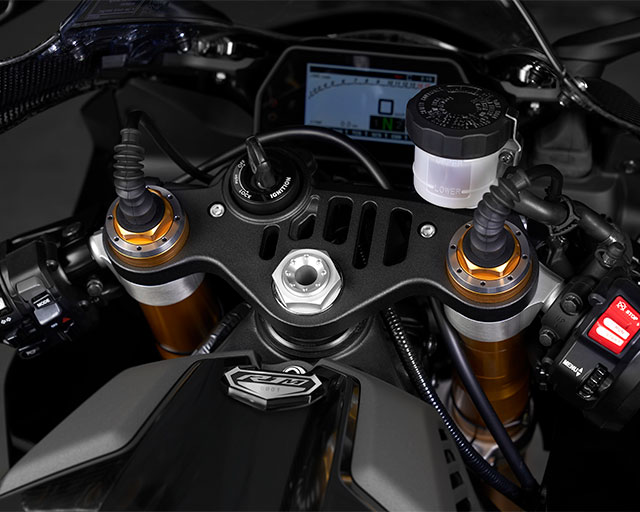

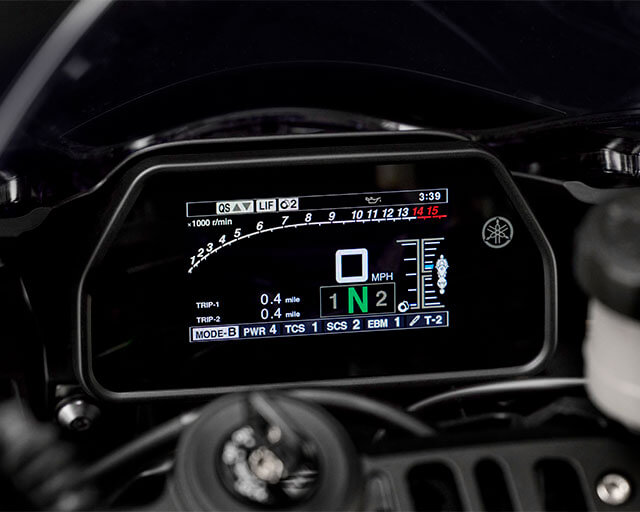

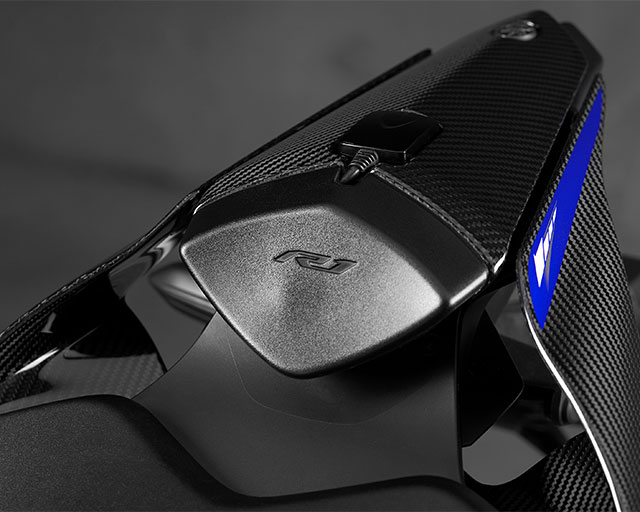

Communication Control Unit
A Communication Control Unit (CCU) enables checks of the various forms of machine information and simplifies the setting process in order to heighten the instrument panel’s function as a rider-machine interface. Comprised of the CCU and a GPS antenna, running data can be recorded via a data logger, and with the GPS function, the system also enables automatic lap time recording on circuit course.

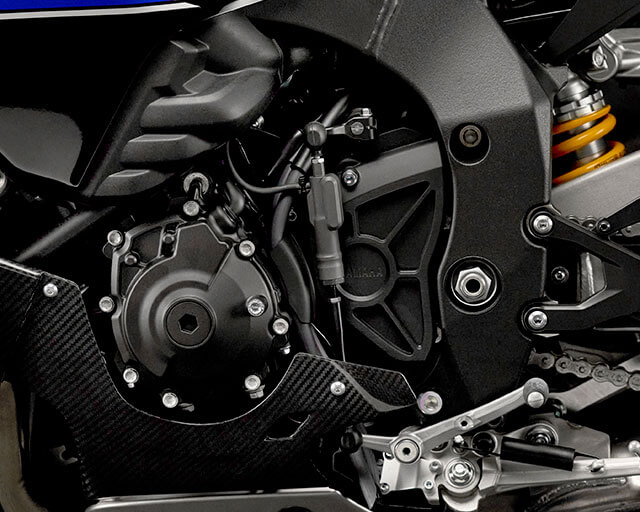

Quick Shift System
The YZF-R1M also comes equipped with a Quick Shift System that gives faster gear changing. This system instantly cancels drive torque when an upshift is detected - enabling full throttle clutchless upshifts for outstanding acceleration through the close ratio 6-speed transmission.

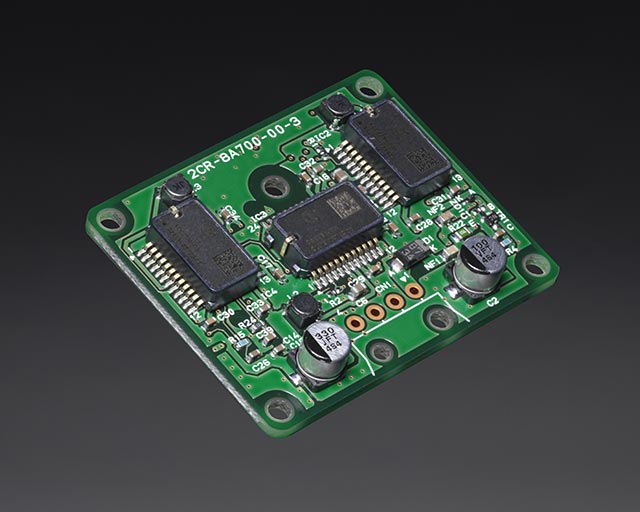

6-Axis IMU
The 6-axis Inertial Measurement Unit (IMU) consists of a gyro sensor (angular velocity sensor) that constantly measures machine pitch, roll and yaw, and a G-sensor (accelerometer) that measures acceleration in the forward-backward, up-down and right-left directions. This technology makes possible the class-leading array of rider aids includes lean sensitive Traction Control System (TCS), Slide Control System (SCS) as well as a front wheel lift control system (LIF) and Brake Control system (BC).

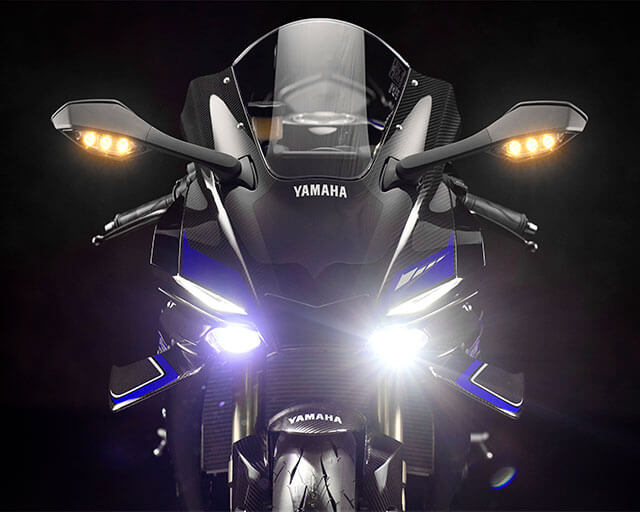

LED Headlights
Lightweight, compact LED twin headlights for both the low and high beam, combined with the body styling, creates a front face symbolising the next-generation of R-Series design.
Accelerator Position Sensor
The Yamaha Chip Controlled Throttle (YCC-T) is activated by a high-tech twist grip assembly that gives a natural feeling for precise control. Featuring a spring, slider and gear that give a smooth and progressive feel, the lightweight ride-by-wire APSG (Accelerator Position Sensor Grip) twist grip gives instant throttle response.

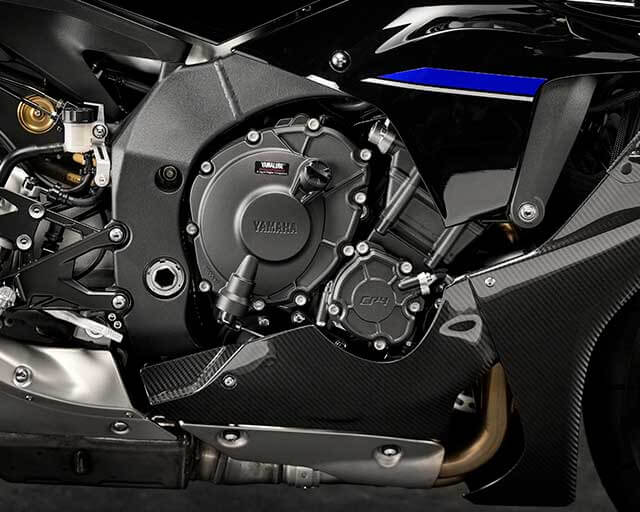

998cc CP4 Engine
Developed using M1 MotoGP technology, the 998cc engine features Bosch injectors that deliver a wide spray angle for increased efficiency. Specially designed finger-follower rocker arms and cam lobes give outstanding high rpm performance – and this EU5 crossplane engine also features a high efficiency lubrication system for optimum performance.

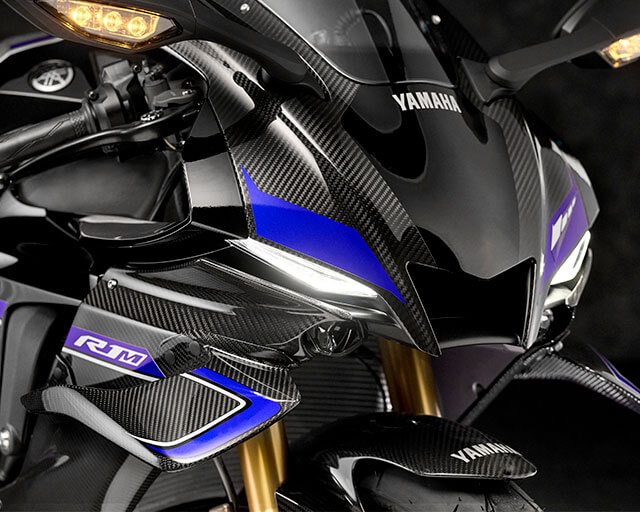

MotoGP Inspired Winglets
Developed through extensive simulator and on-track testing, new MotoGP-inspired carbon fibre winglets create additional downforce for exceptional chassis stability and added front-end feel when braking or cornering.

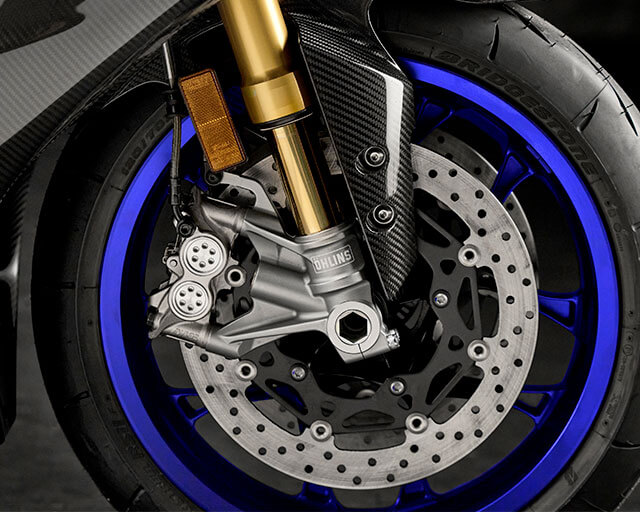

Brake Control System
Technology is transforming the way we ride, and the YZF-R1M features no fewer than seven electronic control systems. Featuring two modes, the Brake Control (BC) system analyses data such as lean angle and slipping acceleration and modulates hydraulic brake pressure to prevent wheel lock ups.
