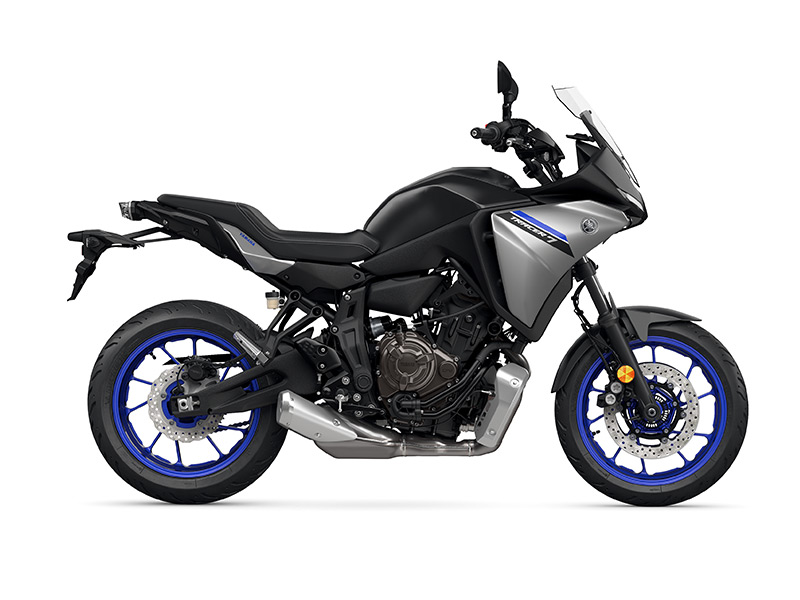

Tracer 7

Tracer 7 is the ultimate middleweight for riders who want sport bike excitement combined with long-range versatility and urban flexibility. This model was available in Australia a few years ago with a LAMs engine but this latest version is new with many updated features and HO (High Output) only - so suits the more experienced rider who appreciates its combination of lightweight chassis and strong power delivery from the 689cc 270-degree twin.

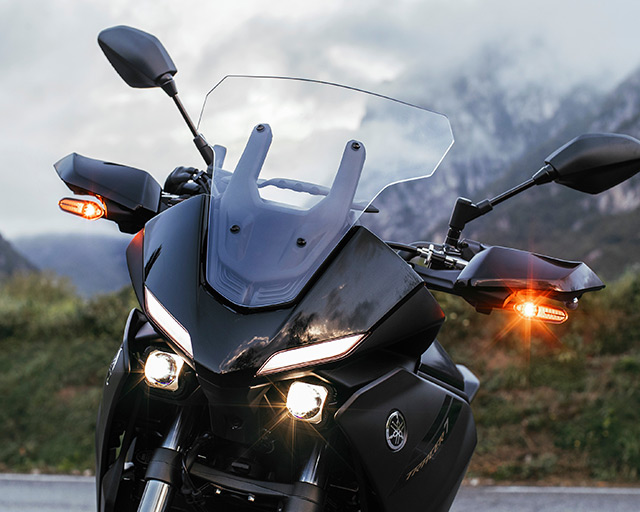

Dual LED headlights and modern bodywork give the Tracer 7 a dynamic and sporty look that sets it apart from other bikes in the category. And there’s a wide range of optional Genuine Yamaha Accessories - including top case and panniers - that provide personalisation solutions.


ColoursIcon Performance, Redline, Midnight Black

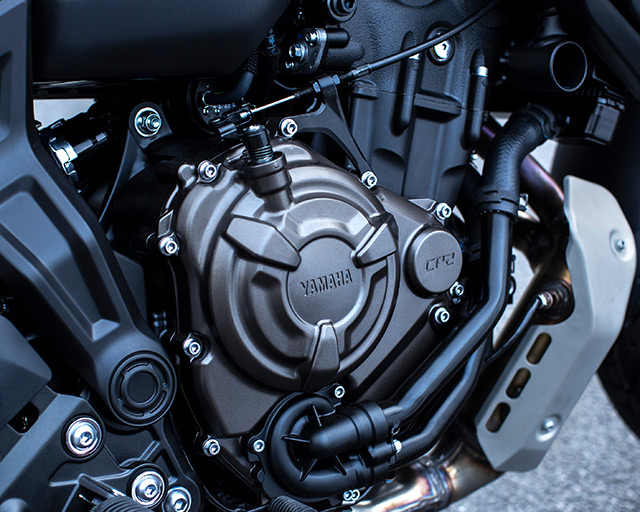

EngineLiquid-cooled, 4-stroke, DOHC, 4-valve, 2-cylinder
Displacement689.0
Bore80.0 x 68.6
Compression11.5 : 1
LubricationWet sump
Fuel ManagementFuel Injection
IgnitionTCI
Starter SystemElectric

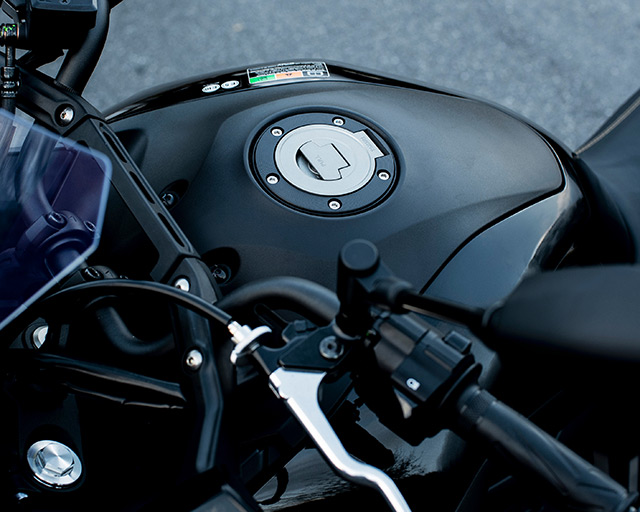

Fuel Tank Capacity17
Oil Capacity3
Final TransmissionChain
TransmissionConstant mesh 6-speed
Length2140 mm
Width840 mm
Height1290 / 1330 mm
Weight197 kg

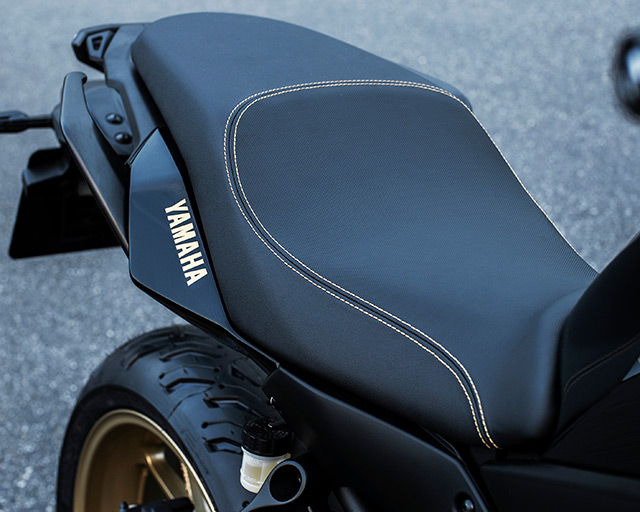

Seat Height835 mm
Wheelbase1460 mm
Clearance140 mm
Frame TypeDiamond

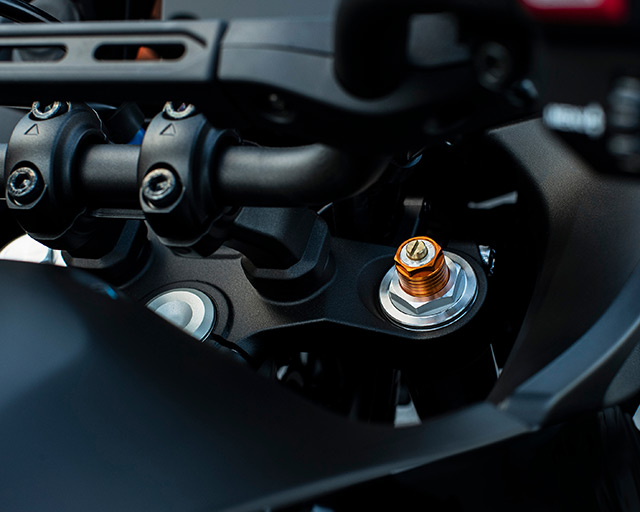

Suspension FrontTelescopic forks, 130mm travel
Suspension RearSwingarm (link suspension), 142mm travel
Brakes FrontHydraulic dual discs, 298mm - ABS
Brakes RearHydraulic single disc, 245mm - ABS
Tyres Front120/70 ZR 17M/C(58W) Tubeless
Tyres Rear180/55 R 17M/C(73W) Tubeless
