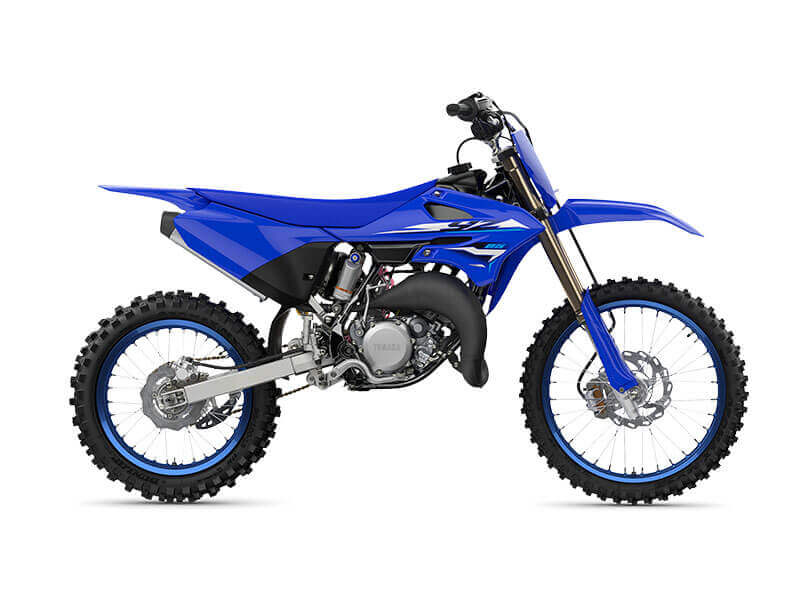

85cc Large Wheel
The YZ85LW (Large Wheel) model takes the race-winning YZ85 formula and enhances off-road capability even more with the addition of a larger 19-inch front wheel and 16-inch rear wheel wrapped in high performance Dunlop MX3S tyres.
Along with its proven liquid-cooled YPVS-equipped 85cc powerplant, fully adjustable suspension and large diameter brakes, the YZ85LW boasts numerous enhancements to expand its overall performance.
Rider ergonomics have been improved by way of a narrower tank design, flatter seat, side covers and slimmer, symmetrical radiator shrouds. This enables greater freedom of movement for smooth shifting of body weight and better machine control.
For demanding junior racers, the YZ85LW has been enhanced in several key chassis areas to optimise strength and rigidity, including revisions to the main frame, longer swingarm and rear wheel axle. The aluminium swingarm was redesigned to enhance balance between longitudinal and torsional rigidity for improved handling stability. A removable rear subframe constructed from lightweight, high-strength aluminium reduces weight. The rear brake master cylinder now has a built-in sub-reservoir providing more linear brake response and increased control.
Colours | Team Yamaha Blue |
---|---|
Engine | Liquid-cooled, 2-stroke with YPVS |
Displacement | 85.0 |
Bore | 47.5 x 47.8 |
Compression | 8.1-9.6 : 1 |
Lubrication | Premix |
Fuel Management | PWK28 |
Ignition | CDI |
Starter System | Kick |
Fuel Tank Capacity | 5 |
Oil Capacity | N/A |
Final Transmission | Chain |
Transmission | Constant mesh 6-speed |
Length | 1895 mm |
Width | 760 mm |
Height | 1175 mm |
Weight | 75 kg |
Dry Weight | kg |
Seat Height | 885 mm |
Wheelbase | 1285 mm |
Clearance | 360 mm |
Frame Type | Semi double cradle |
Suspension Front | Telescopic forks, 275mm travel |
Suspension Rear | Swingarm (link suspension), 287mm travel |
Brakes Front | Hydraulic single disc, 220mm |
Brakes Rear | Hydraulic single disc, 190mm |
Tyres Front | 70/100-19 Dunlop Geomax MX3SF |
Tyres Rear | 90/100-16 Dunlop Geomax MX3S |
