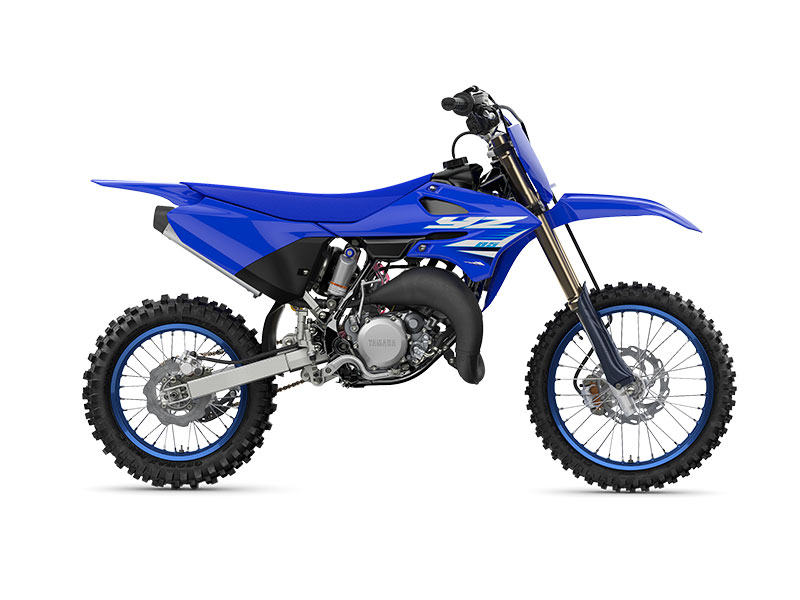

85cc Small Wheel
As an important entry into the world of competitive motocross, the YZ85 has long been the mini race bike of choice for future champions. Light, nimble and fun with a top shelf suspension, it serves up big-bike spec in a small bike package.
Along with its proven liquid-cooled YPVS-equipped 85cc powerplant, fully adjustable suspension and large diameter brakes, the YZ85 rider ergonomics include a narrow tank design, flat seat, side covers and slim symmetrical radiator shrouds. This enables greater freedom of movement for smooth shifting of body weight and better machine control.
Along with its proven liquid-cooled YPVS-equipped 85cc powerplant, fully adjustable suspension and large diameter brakes, the YZ85 rider ergonomics include a narrow tank design, flat seat, side covers and slim symmetrical radiator shrouds. This enables greater freedom of movement for smooth shifting of body weight and better machine control.
Colours | Team Yamaha Blue |
---|---|
Engine | Liquid-cooled, 2-stroke with YPVS |
Displacement | 85.0 |
Bore | 47.5 x 47.8 |
Compression | 8.1-9.6 : 1 |
Lubrication | Premix |
Fuel Management | PWK28 |
Ignition | CDI |
Starter System | Kick |
Fuel Tank Capacity | 5 |
Oil Capacity | N/A |
Final Transmission | Chain |
Transmission | Constant mesh 6-speed |
Length | 1820 mm |
Width | 760 mm |
Height | 1135 mm |
Weight | 73 kg |
Dry Weight | kg |
Seat Height | 840 mm |
Wheelbase | 1255 mm |
Clearance | 320 mm |
Frame Type | Semi double cradle |
Suspension Front | Telescopic forks, 275mm travel |
Suspension Rear | Swingarm (link suspension), 282mm travel |
Brakes Front | Hydraulic single disc, 220mm |
Brakes Rear | Hydraulic single disc, 190mm |
Tyres Front | 70/100-17 Dunlop Geomax MX3SF |
Tyres Rear | 90/100-14 Dunlop Geomax MX3S |
