$4,649.00 Rideaway

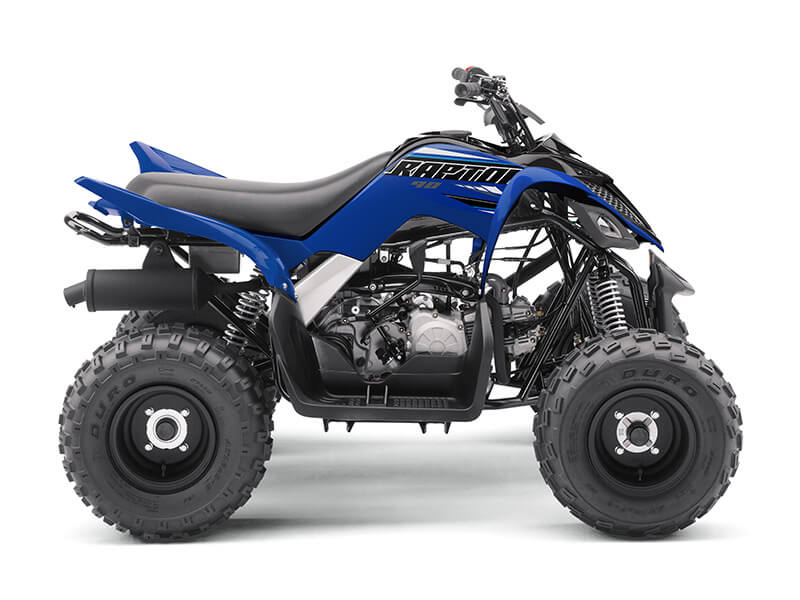

Raptor 90
The YFM90R may be small in size, but it's equipped with several features found on larger Yamaha models - including double A-arm independent front suspension, drum brakes, CVT transmission and electric start.
The YFM90R balances power with a range of features to give you total peace of mind. A simple CDI plug-in adjusts engine power output to suit different riding abilities while a parking brake on the handlebar ensures that the YFM90R stays exactly where you left it. The fully automated gearbox allows junior to concentrate on the track to build confidence.
| Colours | Team Yamaha Blue, Yamaha White |
|---|---|
| Engine | Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder |
| Displacement | 90 |
| Bore | 47.0 x 51.8 |
| Compression | 9.2 : 1 |
| Lubrication | Wet sump |
| Fuel Management | H66D x 1 |
| Ignition | CDI |
| Starter System | Electric and Kick |
| Fuel Tank Capacity | 6.6 |
| Oil Capacity | 0.9 |
| Final Transmission | Chain |
| Transmission | V-belt automatic, F, N, R |
| Length | 1485 mm |
| Width | 1020 mm |
| Height | 955 mm |
| Weight | 126.5 kg |
| Dry Weight | 120 kg |
| Seat Height | 750 mm |
| Wheelbase | 1030 mm |
| Clearance | 210 mm |
| Frame Type | Steel tube |
| Suspension Front | Single A-arm, 126mm travel |
| Suspension Rear | Swingarm, 145mm travel |
| Brakes Front | Dual drums |
| Brakes Rear | Drum |
| Tyres Front | AT18 x 7-8 |
| Tyres Rear | AT18 x 9-8 |
Features
Comfortable Chassis
An advanced frame design incorporates a large 6.6 litre fuel tank, plush seat and roomy integrated floorboards inside a long, secure wheelbase.
Sporty 90cc Engine
The Raptor® 90 is built to bring maximum fun to the youth ATV class for riders 10 and up, with a low-maintenance 90cc engine tuned to develop excellent low-to-mid range performance. It also has features surprising in this segment, like a fully automatic CVT transmission with reverse, gated shifter (F/N/R) and electric start with a back-up kickstart - all standard.
Scaled Down Not Scaled Back
Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality, with preload-adjustable shocks offering 127mm of wheel travel and adding to the Raptor 90’s full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 147mm of wheel travel.
Modern Reliable Electronics
The CDI system means reliable ignition performance, with a strong, efficient spark – and a sealed, maintenance-free battery gives worry-free service. Handlebar-mounted reverse and neutral indicators keep the rider informed, too.
Yamaha Raptor DNA
For sporty looks and handling, Raptor 90 uses low-profile Duro tyres on lightweight wheels and styling unmistakably inspired by the mighty Raptor 700R.
Electric Starter
Push-button electric starting comes standard, of course, and an emergency kick starter is also provided in a storage spot under the seat for additional peace of mind.
