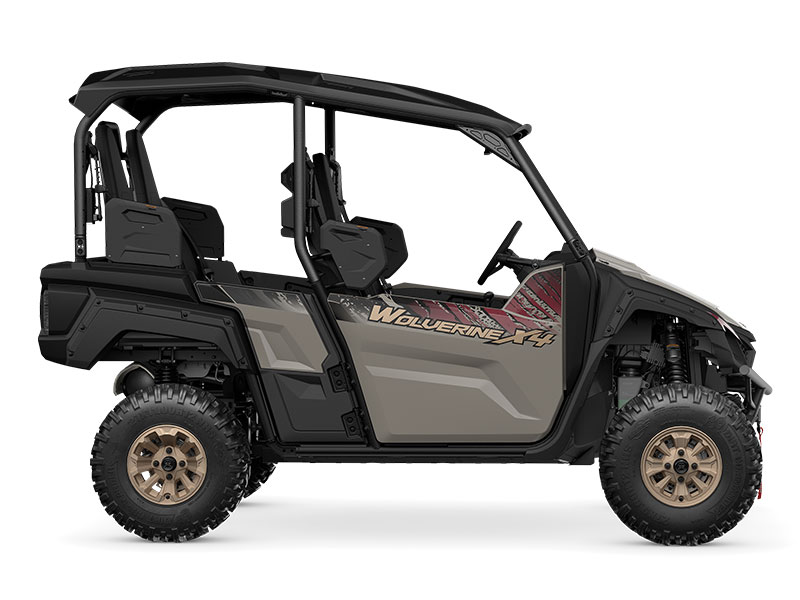

4 Seater Adventurer
Wolverine X4 XT-R delivers superior handling, especially on tight, technical trails, combined with Yamaha’s legendary Real World Tough durability and reliability.
Smooth, ultra-quiet power comes from an 847cc twin-cylinder engine, along with Yamaha’s Real World Tech including the proven Ultramatic CVT transmission, Yamaha’s On-Command System with 2WD, 4WD and 4WD with full differential lock, and Yamaha’s exclusive EPS.
Kitted out in top-shelf XT-R trim including durable 27-inch radial tyres, a WARN® VRX 4500 winch, and high-quality painted body and graphics package with colour-matched aluminium wheels, Wolverine X4 XT-R sits four in comfort ready to take on tough terrain.
Smooth, ultra-quiet power comes from an 847cc twin-cylinder engine, along with Yamaha’s Real World Tech including the proven Ultramatic CVT transmission, Yamaha’s On-Command System with 2WD, 4WD and 4WD with full differential lock, and Yamaha’s exclusive EPS.
Kitted out in top-shelf XT-R trim including durable 27-inch radial tyres, a WARN® VRX 4500 winch, and high-quality painted body and graphics package with colour-matched aluminium wheels, Wolverine X4 XT-R sits four in comfort ready to take on tough terrain.
| Colours | Titan and Tactical Black |
|---|---|
| Engine | Liquid-cooled, 4-stroke, DOHC, parallel twin |
| Displacement | 847.0 |
| Bore | 82.0 x 80.2 |
| Compression | 10.5 : 1 |
| Lubrication | Dry sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric |
| Fuel Tank Capacity | 35 |
| Oil Capacity | 4.4 |
| Final Transmission | Shaft |
| Transmission | Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock |
| Length | 3100 mm |
| Width | 1580 mm |
| Height | 1973 mm |
| Weight | 823 kg |
| Dry Weight | kg |
| Seat Height | mm |
| Wheelbase | 2125 mm |
| Clearance | 286 mm |
| Frame Type | Steel tube |

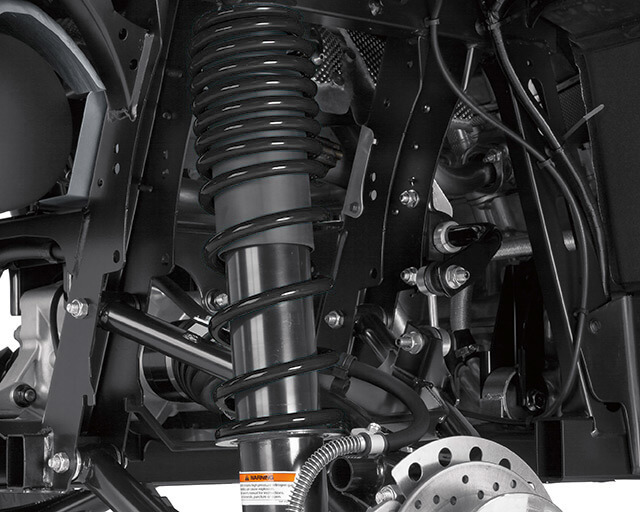

| Suspension Front | Independent double wishbone, 221mm wheel travel |
| Suspension Rear | Independent double wishbone, 236mm wheel travel with self-leveling shock absorbers |
| Brakes Front | Hydraulic dual discs |
| Brakes Rear | Hydraulic dual discs |
| Tyres Front | 27 x 9-12 |
| Tyres Rear | 27 x 11-12 |
