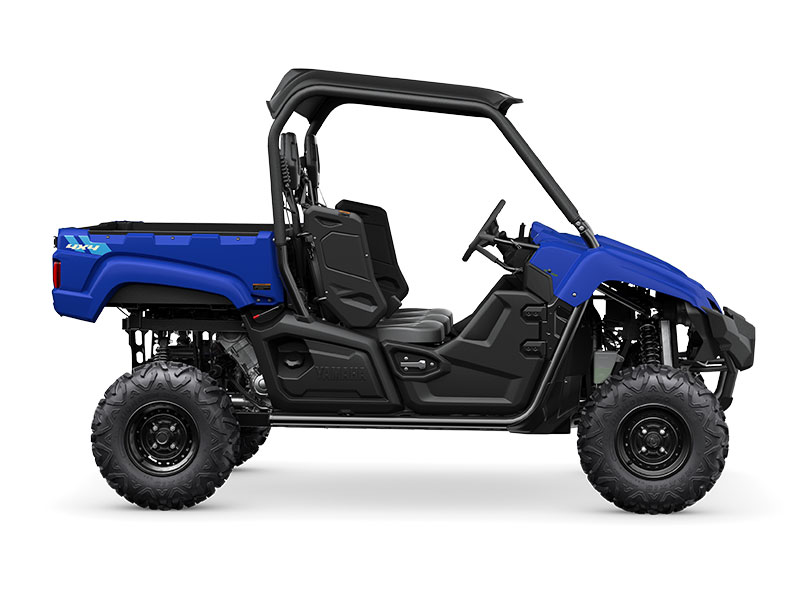

Multi-purpose 3 Seater
Viking offers workplace solutions – you need to access remote areas with two colleagues? Viking is your best option. Viking is equipped with our unique Ultramatic On Command drive system with 2WD, 4WD and 4WD Diff Lock and downhill engine braking plus a torquey donk that pulls like a mule.

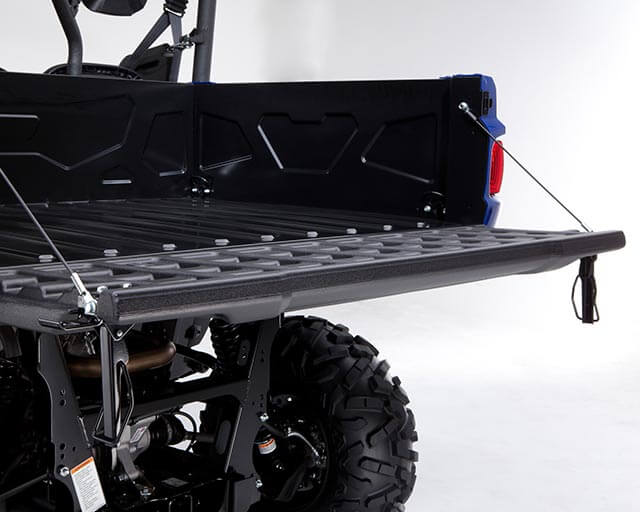

Viking enhancements include automotive-style two-stage door latches and a parking brake warning buzzer. Noise and vibration reduction features include new rubber damper plates, a more rigid chassis, additional sound dampening materials and an engine-mounted torque rod for a more relaxing ride at any engine RPM. A reinforced rear steel cargo bed now incorporates mounting points on the bed rails and a rubber cargo bed mat further reduces sound and vibration.
Viking enhancements include automotive-style two-stage door latches and a parking brake warning buzzer. Noise and vibration reduction features include new rubber damper plates, a more rigid chassis, additional sound dampening materials and an engine-mounted torque rod for a more relaxing ride at any engine RPM. A reinforced rear steel cargo bed now incorporates mounting points on the bed rails and a rubber cargo bed mat further reduces sound and vibration.
Colours | Steel Blue |
---|---|

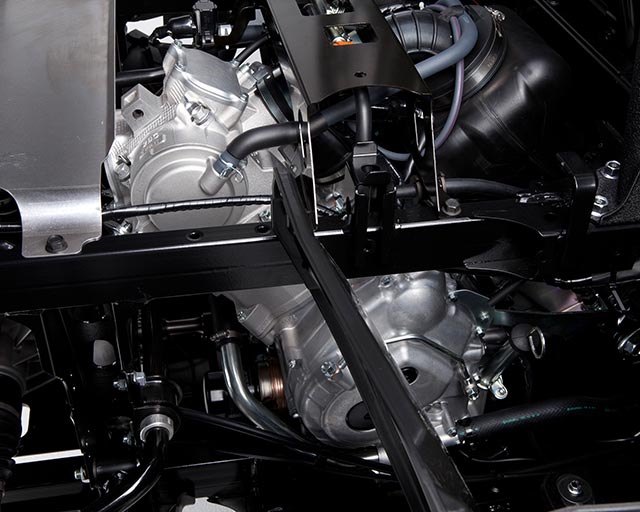

Engine | Liquid-cooled, 4-stroke, SOHC, 4 valve, single cylinder |
Displacement | 686.0 |
Bore | 102.0 x 84.0 |
Compression | 10.0 : 1 |
Lubrication | Wet Sump |
Fuel Management | Fuel Injection |
Ignition | TCI |
Starter System | Electric |
Fuel Tank Capacity | 36.7 |
Oil Capacity | 2.6 |
Final Transmission | Shaft |

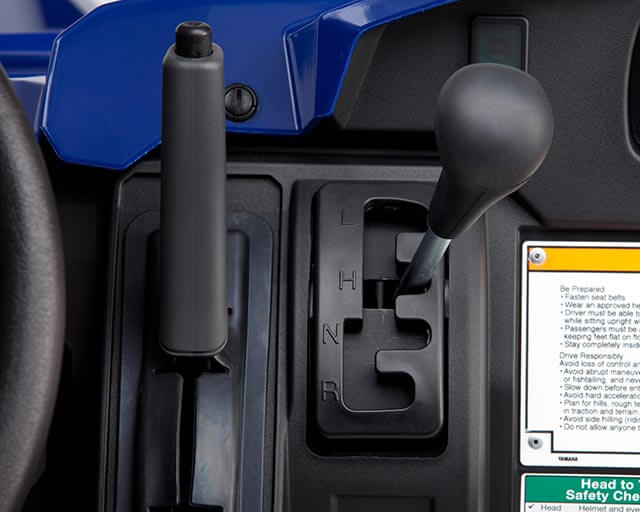

Transmission | Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P |
Length | 3100 mm |
Width | 1570 mm |
Height | 1925 mm |
Weight | 649 kg |
Dry Weight | 615 kg |
Seat Height | 793 mm |
Wheelbase | 2135 mm |
Clearance | 300 mm |
Frame Type | Steel tube |
Suspension Front | Independent double wishbone, 205mm travel |
Suspension Rear | Independent double wishbone, 205mm travel |
Brakes Front | Hydraulic dual discs |
Brakes Rear | Hydraulic dual discs |
Tyres Front | 25 × 8-12NHS |
Tyres Rear | 25 × 10-12NHS |
