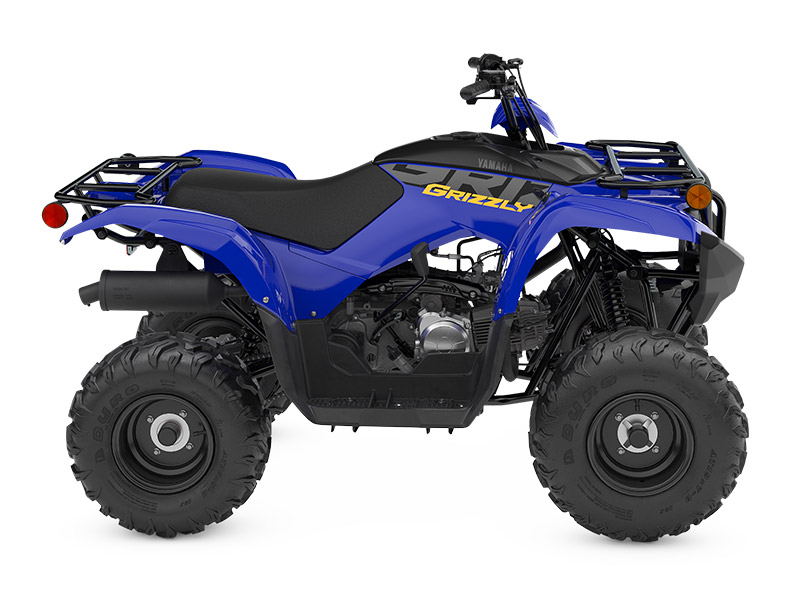

Small Adventure Seeker
The Grizzly 90 is built to bring maximum fun for young ATV riders ages 10 and up. The low-maintenance 90cc engine is tuned to deliver excellent low- to mid-range performance, while the fully automatic CVT transmission with reverse, gated shifter and back-up kickstart all come standard.
With convenient features like electric-start, a large comfortable seat, front/rear racks and aggressive styling, the Grizzly 90 is the perfect machine for riders who want to REALise Adventure with family and friends.
With convenient features like electric-start, a large comfortable seat, front/rear racks and aggressive styling, the Grizzly 90 is the perfect machine for riders who want to REALise Adventure with family and friends.
| Colours | Steel Blue, Armour Grey |
|---|---|
| Engine | Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder |
| Displacement | 89.9 |
| Bore | 47.0 x 51.8 |
| Compression | 9.2 : 1 |
| Lubrication | Wet sump |
| Fuel Management | H66D x 1 |
| Ignition | CDI |
| Starter System | Electric and Kick |
| Fuel Tank Capacity | 6.6 |
| Oil Capacity | |
| Final Transmission | Chain |
| Transmission | V-belt automatic, F, N, R |
| Length | 1562 mm |
| Width | 1031 mm |
| Height | 1005 mm |
| Weight | 139.6 kg |
| Dry Weight | kg |
| Seat Height | 730 mm |
| Wheelbase | 1032 mm |
| Clearance | 210 mm |
| Frame Type | Steel tube |
| Suspension Front | Single A-arm, 126mm travel |
| Suspension Rear | Swingarm, 145mm travel |
| Brakes Front | Dual drums |
| Brakes Rear | Drum |
| Tyres Front | AT19 x 7-8 |
| Tyres Rear | AT18 x 9-8 |
