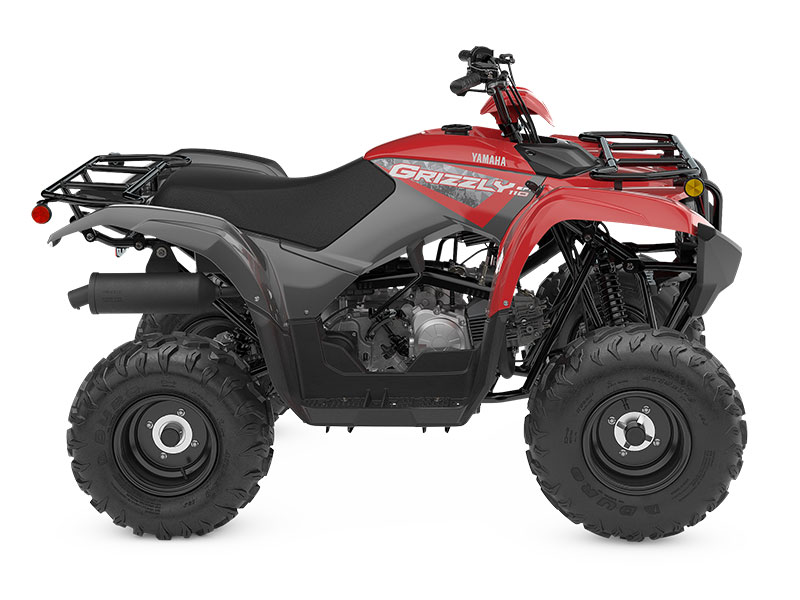

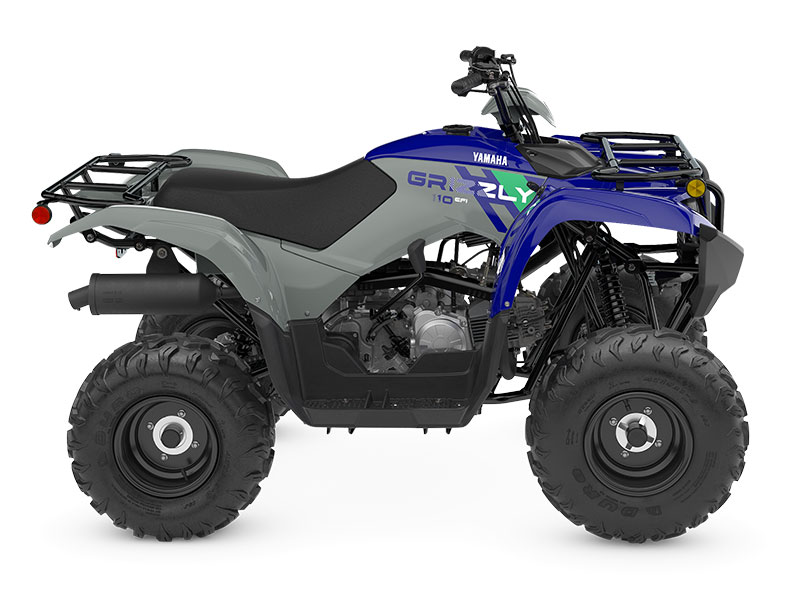

Small Adventure Seeker
The Grizzly 110 is built to bring maximum fun for young ATV riders ages 10 and up. Featuring a new, larger displacement 112cc engine with advanced fuel injection tuned to deliver excellent low- to mid-range performance, the new Grizzly 110 is the perfect platform for allowing young riders to build skill and confidence.
| Colours | Steel Blue, Grey Metallic Red |
|---|---|

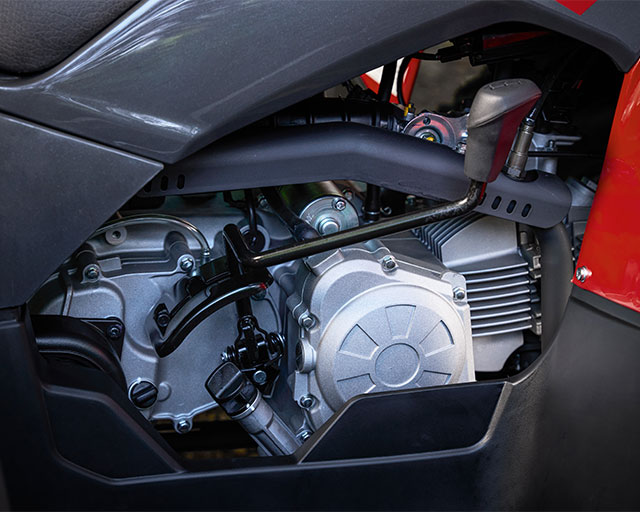

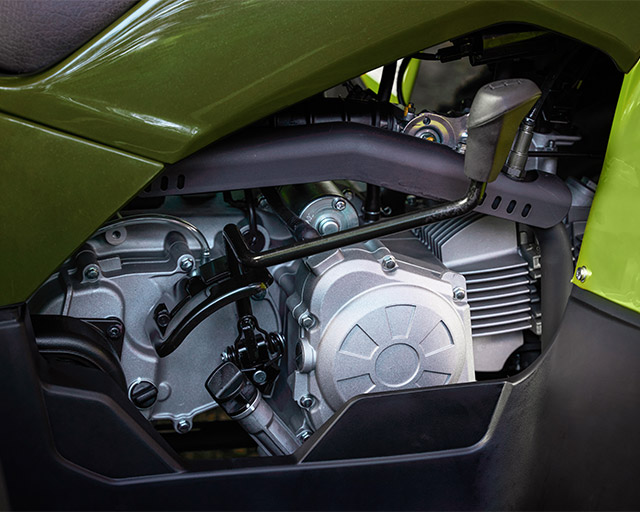

| Engine | Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder |
| Displacement | 112 |
| Bore | 52.4 x 51.8 |
| Compression | 9.2 : 1 |
| Lubrication | Wet sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric |

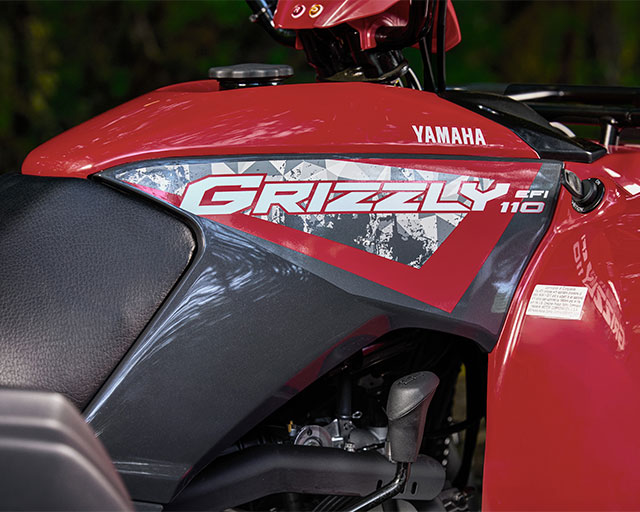

| Fuel Tank Capacity | 6.8 |
| Oil Capacity | |
| Final Transmission | Chain |

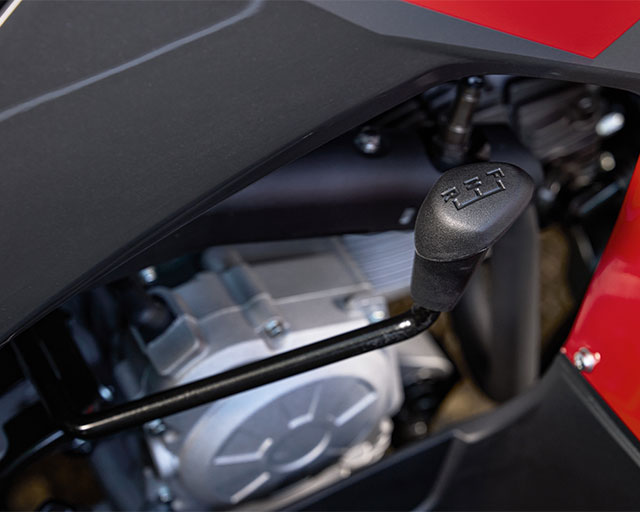

| Transmission | V-belt automatic, F, N, R |
| Length | 1562 mm |
| Width | 1030 mm |
| Height | 1005 mm |
| Weight | 143 kg |
| Dry Weight | kg |
| Seat Height | 730 mm |
| Wheelbase | 1030 mm |
| Clearance | 210 mm |
| Frame Type | Steel tube |
| Suspension Front | Single A-arm, 127mm travel |
| Suspension Rear | Swingarm, 145mm travel |
| Brakes Front | Dual drums |

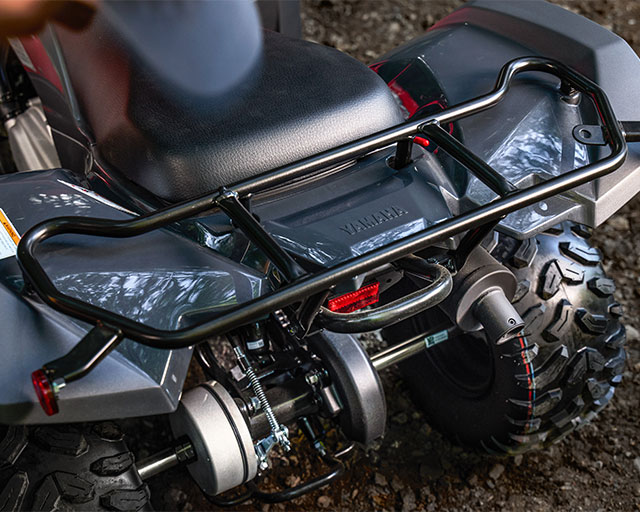

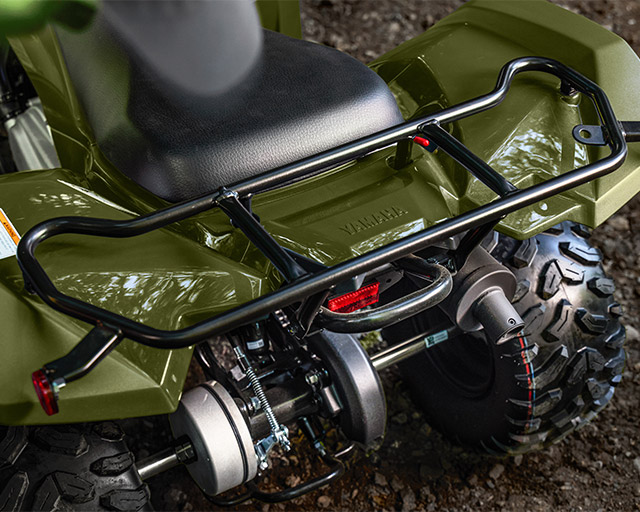

| Brakes Rear | Drum |

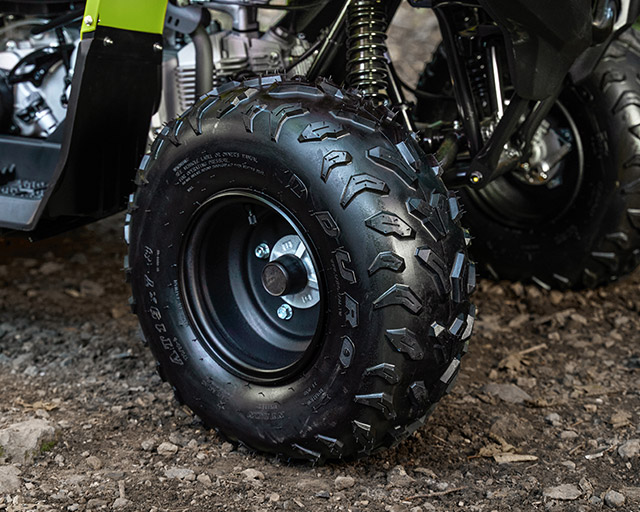

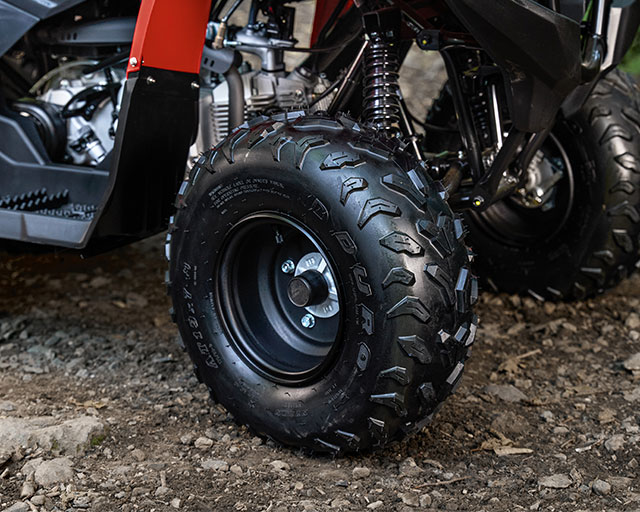

| Tyres Front | AT19 x 7-8 |
| Tyres Rear | AT18 x 9-8 |
