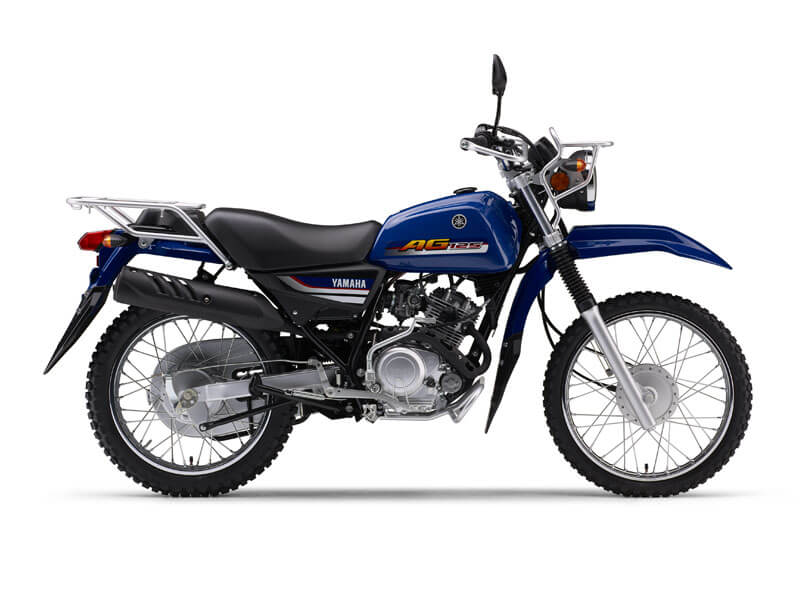

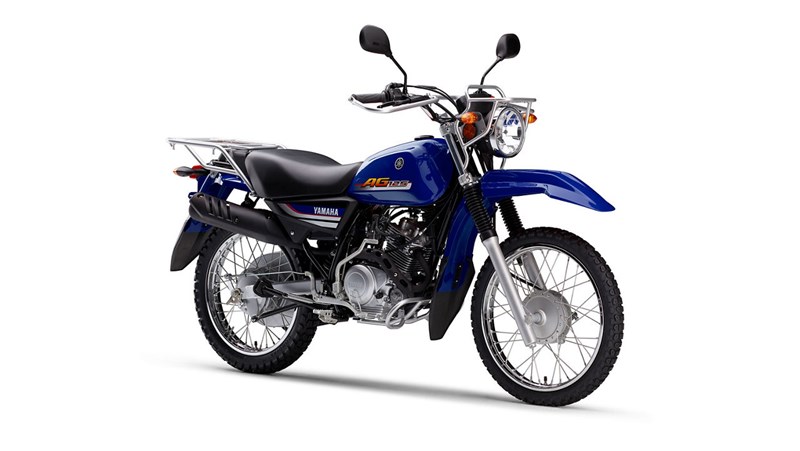

124cc AG Bike
This new take on an old favourite is powered by a reliable 124cc air cooled four-stroke engine that delivers plenty of smooth, controllable power. Its square bore and stroke give a responsive delivery that gets the power to the ground for traction in the muddiest conditions.
Sporting many of the traditional AG bike features found on the original AG100, this model is designed and built for our tough Aussie conditions with modern conveniences such as an electric start and monoshock suspension. Sealed drum brakes and a sealed chaincase keep the mud out of hard-working parts while heavy duty front and rear racks and plenty of chain, engine and handlebar protection make this new AG bike a new farmer favourite.
Sporting many of the traditional AG bike features found on the original AG100, this model is designed and built for our tough Aussie conditions with modern conveniences such as an electric start and monoshock suspension. Sealed drum brakes and a sealed chaincase keep the mud out of hard-working parts while heavy duty front and rear racks and plenty of chain, engine and handlebar protection make this new AG bike a new farmer favourite.
| Colours | Yamaha Blue |
|---|---|
| Engine | Air-cooled, 4-stroke, single cylinder |
| Displacement | 124.0 |
| Bore | 54.0 x 54.0 |
| Compression | 10.0 : 1 |
| Lubrication | Wet Sump |
| Fuel Management | Carburetter |
| Ignition | CDI |
| Starter System | Electric and Kick |
| Fuel Tank Capacity | 11 |
| Oil Capacity | 1.0 |
| Final Transmission | Chain |
| Transmission | Constant mesh 5-speed |
| Length | 2110 mm |
| Width | 940 mm |
| Height | 1095 mm |
| Weight | 113 kg |
| Dry Weight | 105 kg |
| Seat Height | 800 mm |
| Wheelbase | 1350 mm |
| Clearance | 225 mm |
| Frame Type | Semi double cradle |
| Suspension Front | Telescopic forks, 180mm travel |
| Suspension Rear | Swingarm, 130mm travel |
| Brakes Front | Drum |
| Brakes Rear | Drum |
| Tyres Front | 2.75-19-4PR Tube type |
| Tyres Rear | 3.50-18-4PR Tube type |
