$20,695
Not a Single Gram of Fat - Just Muscle

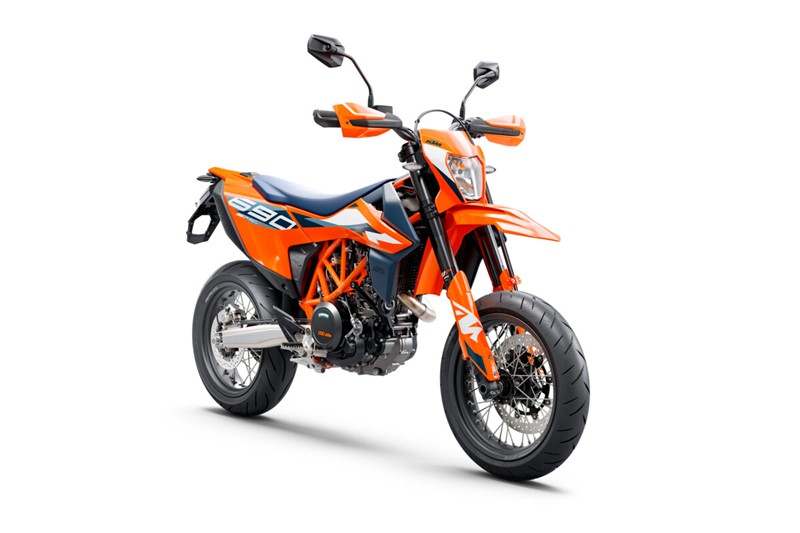

The KTM 690 SMC R raises the bar in the supermotos stakes, thanks in part to a lightweight chassis, a legendary 690 LC4 motor and a sohisticated electronics package. Whether you express your tarmac-sliding talent on mountain roads or on the apexes of your favourite track, you'll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.
TECHNICAL DETAILS
ENGINE
- TORQUE73.5 Nm
- TRANSMISSION6-speed
- COOLING Liquid cooled
- POWER IN KW55 kW
- STARTER Electric starter
- STROKE80 mm
- BORE105 mm
- CLUTCHAPTC(TM) slipper clutch, hydraulically actuated
- CO<SUB>2</SUB> EMISSIONS96 g/km
- DISPLACEMENT692.7 cm³
- EMS Keihin EMS with RBW, twin ignition
- DESIGN1-cylinder, 4-stroke engine
- FUEL CONSUMPTION4.1 l/100 km
- LUBRICATION Forced oil lubrication with 2 oil pumps
CHASSIS
- TANK CAPACITY (APPROX.)13.5 l
- ABS Two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)
- FRONT BRAKE DISC DIAMETER320 mm
- REAR BRAKE DISC DIAMETER240 mm
- FRONT BRAKE Brembo four-piston radial fixed caliper, brake disc
- REAR BRAKE Single-piston floating caliper
- CHAINX-Ring 5/8 x 1/4"
- DRY WEIGHT147 kg
- FRAME DESIGN Chrome-moly tubular space frame, powder-coated
- FRONT SUSPENSIONWP APEX 48
- GROUND CLEARANCE237 mm
- REAR SUSPENSIONWP APEX with Pro-Lever linkage
- SEAT HEIGHT892 mm
- STEERING HEAD ANGLE63 °
- SUSPENSION TRAVEL (FRONT)215 mm
- SUSPENSION TRAVEL (REAR)240 mm
