$10,740
LEADING THE CHARGE

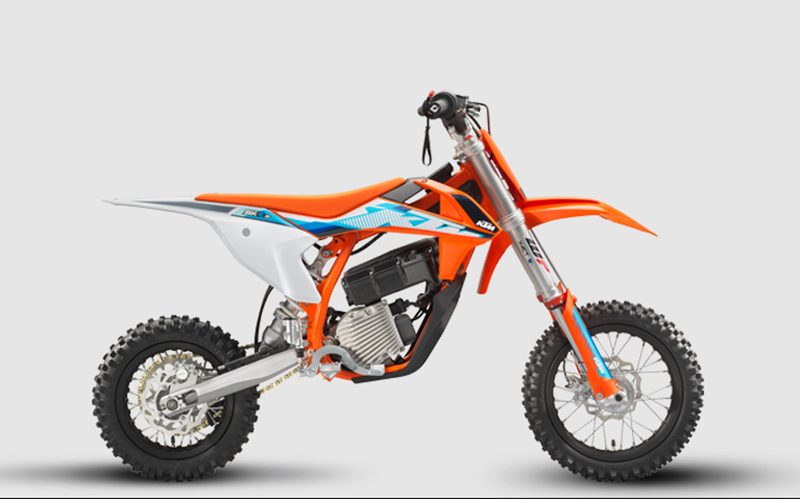

The KTM SX-E 5 is an all-electric mini-crosser aimed at both beginner and competitive junior riders. With zero emissions and minimal sound pollution, it takes its place at the leading edge of competitive mini-cross, and provides a real-world READY TO RACE alternative to the petrol-powered 50 cc engine. Featuring high-quality components that make it significantly different from the many electric mini-cycles available on the market, the KTM SX-E 5 is a fully-fledged competition motorcycle, making it more accessible to younger riders for use in areas where noise emissions are restricted.
ENGINE
- RATED OUTPUT 2 kW / 3,200 rpm
- TORQUE 13.8 Nm
- TRACTION BATTERY Lithium-Ion KTM PowerPack
- BATTERY CAPACITY21 Ah
- CHARGER LINE VOLTAGE 80-240 V/50-60 Hz
- CHARGING INPUT Quick charging 5 A @ 230 V (AC)
- CHARGING POWER900 W
- CHARGING TIME 100 % 70 min.
- CHARGING TIME 80 % 45 min.
- COOLING Air cooled
- ENERGY CONTENT 0.907 kWh
- ELECTRIC MOTOR 48 V - BLDC motor with outer rotor
- 6000 rpm
- MAX. POWER5 kW / 3,900 rpm
CHASSIS
- FRONT BRAKE DISC DIAMETER 160 mm
- REAR BRAKE DISC DIAMETER 160 mm
- FRONT BRAKE Disc brake
- REAR BRAKE Disc brake
- CHAIN1/2 x 3/16"
- FRAME DESIGN Central-tube frame with double-cradle
- FRONT SUSPENSION XACT 35 WP Upside-Down fork, Ø 35 mm
- GROUND CLEARANCE 252 mm
- REAR SUSPENSION WP Xplor PDS shock absorber
- SEAT HEIGHT 665 mm
- STEERING HEAD ANGLE 66 °
- SUSPENSION TRAVEL (FRONT )205 mm
- SUSPENSION TRAVEL (REAR) 185 mm
