$15,545

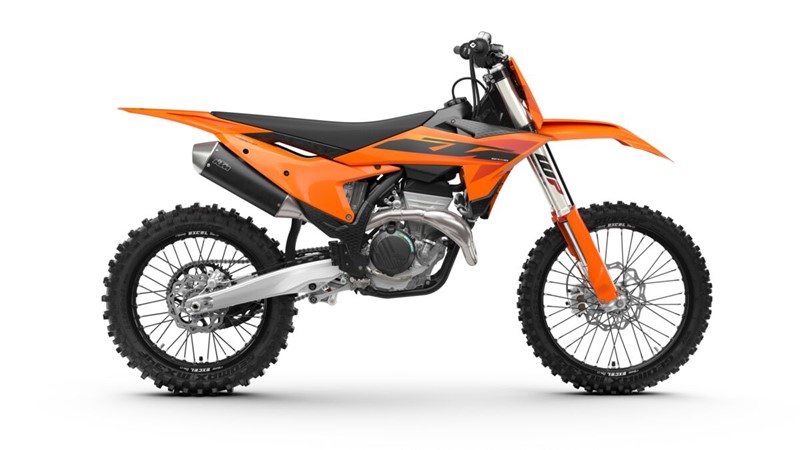

With over a decade of racing - and winning - under its seat, the KTM 350 SX-F has long shed its underdog label and proven itself a worthy adversary. Delivering usable power throughout the rev range, unwavering stability at speed, and true championship-winning credentials, the 2025 KTM 350 SX-F is once again READY TO RACE.
ENGINE
- TRANSMISSION5-speed
- STARTERElectric starter
- STROKE57.5 mm
- BORE88 mm
- CLUTCHWet multi-disc DS clutch, Brembo hydraulics
- COMPRESSION RATIO14.6
- DISPLACEMENT349.7 cm³
- EMSKeihin EMS
- DESIGN1-cylinder, 4-stroke engine
- FUEL-MIXTURE GENERATIONKeihin EFI, throttle body 44 mm
CHASSIS
- WEIGHT (WITHOUT FUEL)101.9 kg
- TANK CAPACITY (APPROX.)7.2 l
- WHEELBASE1493 mm
- FRONT BRAKE DISC DIAMETER260 mm
- REAR BRAKE DISC DIAMETER220 mm
- FRONT BRAKEDisc brake
- REAR BRAKEDisc brake
- CHAIN520, Non-sealed
- FRAME DESIGNCentral double-cradle-type 25CrMo4 steel
- FRONT SUSPENSIONWP XACT-USD (AER), Ø 48 mm
- GROUND CLEARANCE343 mm
- HANDLEBARNeken, aluminium Ø 28/22 mm
- REAR SUSPENSIONWP XACT Monoshock with linkage
- SEAT HEIGHT958 mm
- SILENCERAluminium
- STEERING HEAD ANGLE63.9 °
- REAR SUBFRAME DESIGNAluminum-reinforced polyamide
- SUSPENSION TRAVEL (FRONT)310 mm
- SUSPENSION TRAVEL (REAR)300 mm
- WHEELSSpoked wheels with aluminium rims
